DEVIL'S BRIDGE

Project details

  • LOCATION: River Llobregat, Martorell (Spain)
  • CLIENT: --
  • DESIGNER: --
  • CO-DESIGNER: --
  • HELPERS: --
  • ARCHITECTURE: --
  • CONSTRUCTOR: --
  • PROPERTY: Barcelona Regional Council
  • TYPOLOGY: Composite rigid-frame bridge with sculptural piers in white concrete
  • PROJECT: --
  • CONSTRUCTION: 1974
  • SCOPE: Basic design, construction design, Construction management
  • BUDGET: --
  • AWARDS: --

Technical Data

  • Length: 200 m
  • Main span: 100 m
  • Width: 10 m

Description

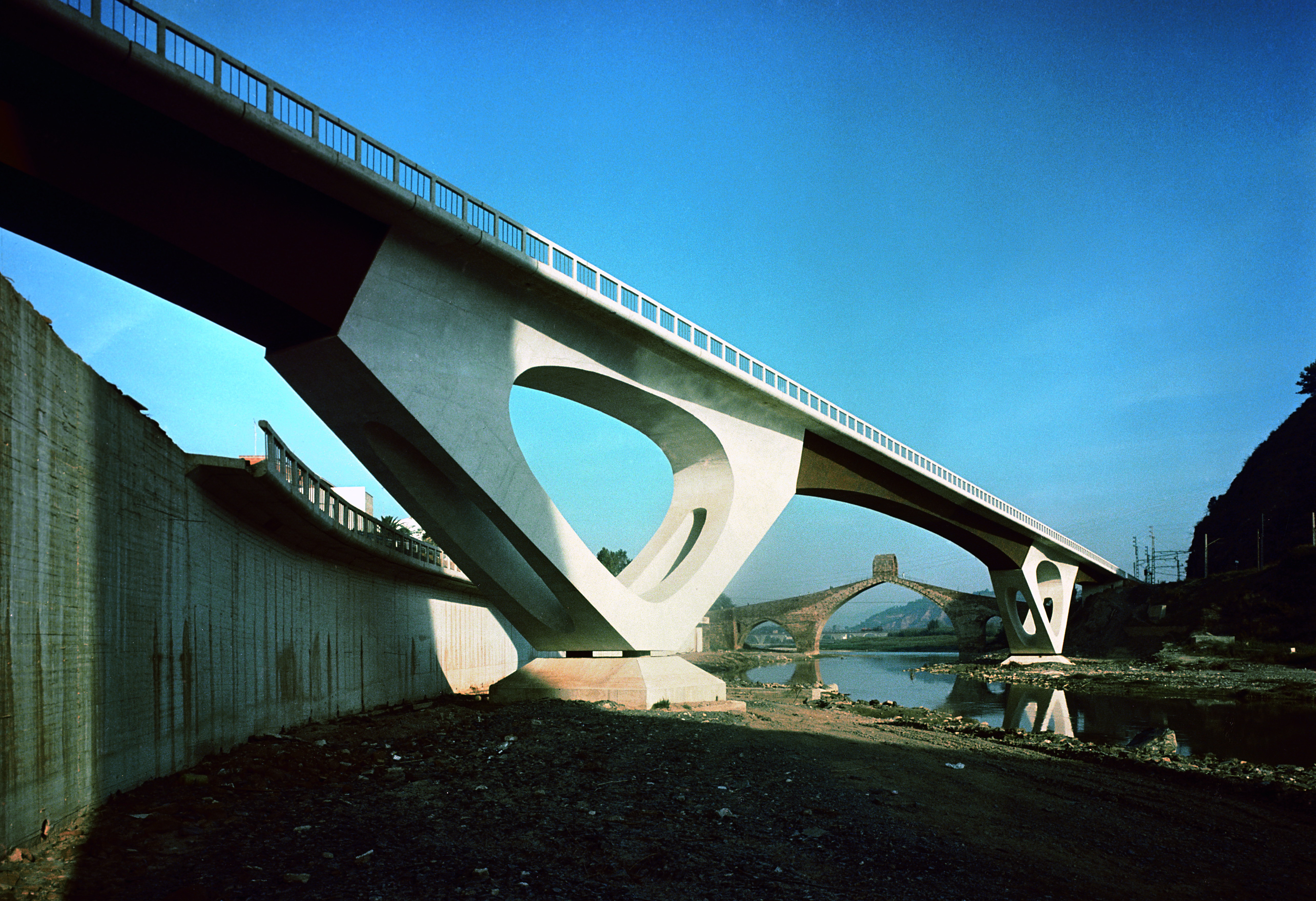

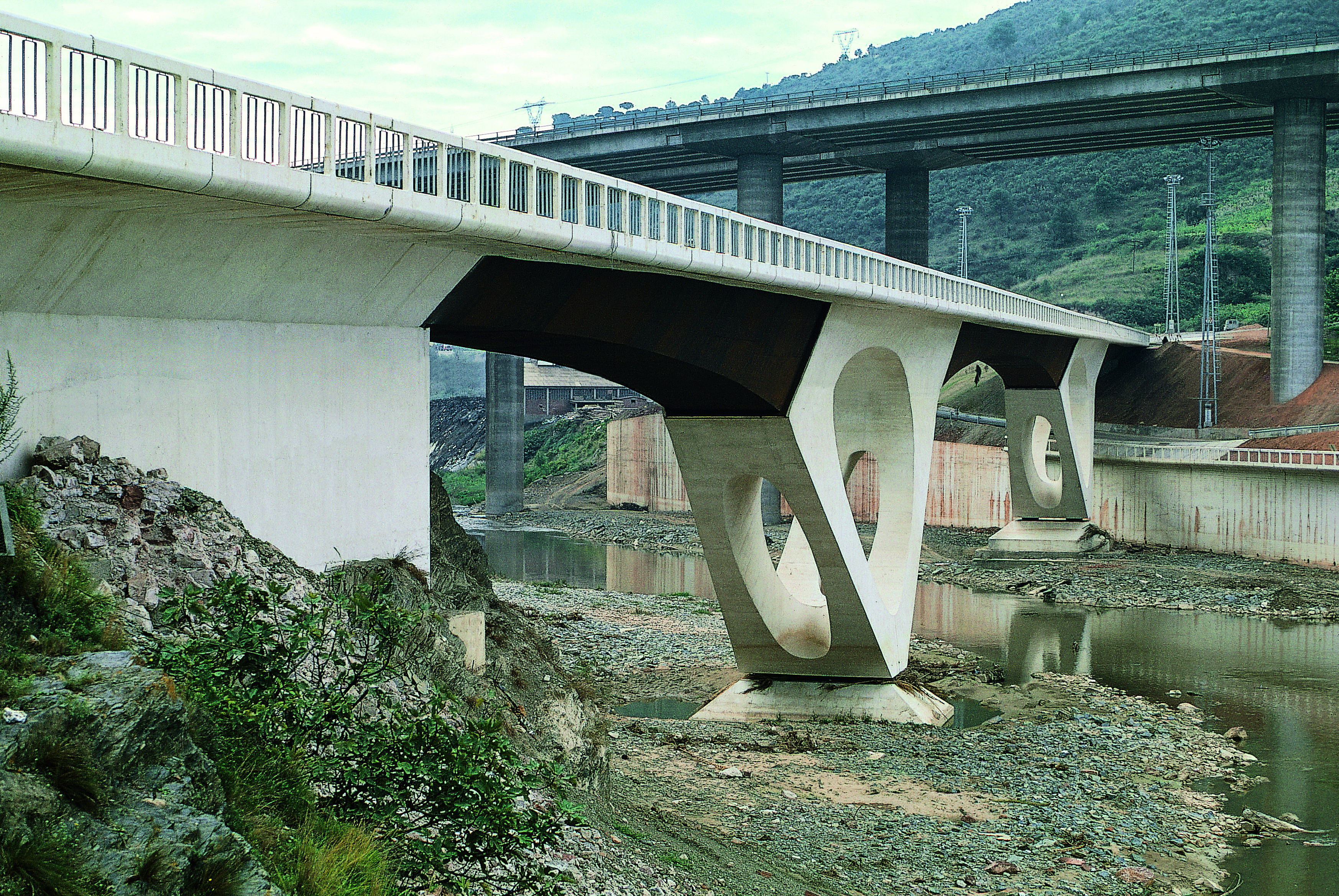

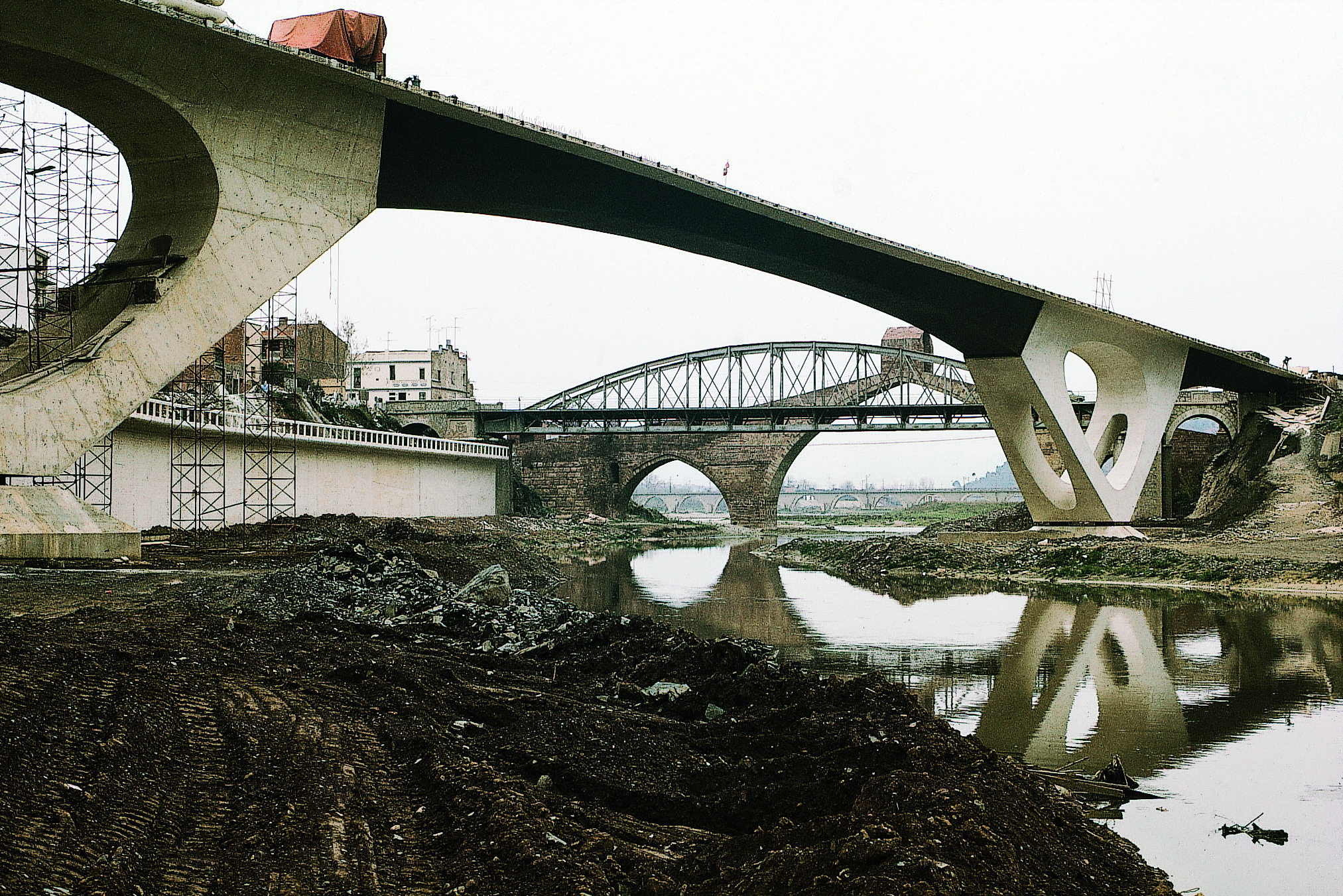

The structure is set up as a two-hinged rigid-frame arch system with a span arrangement of 50 + 100 + 50 meter. Large longitudinal, oval holes in the two V-shaped piers give this bridge a light and open appearance. The leng of these piers are prestressed by means of four groups of tendons and their embedded frontal connection sheets ensure a continue transition into the composite variable depth girders.

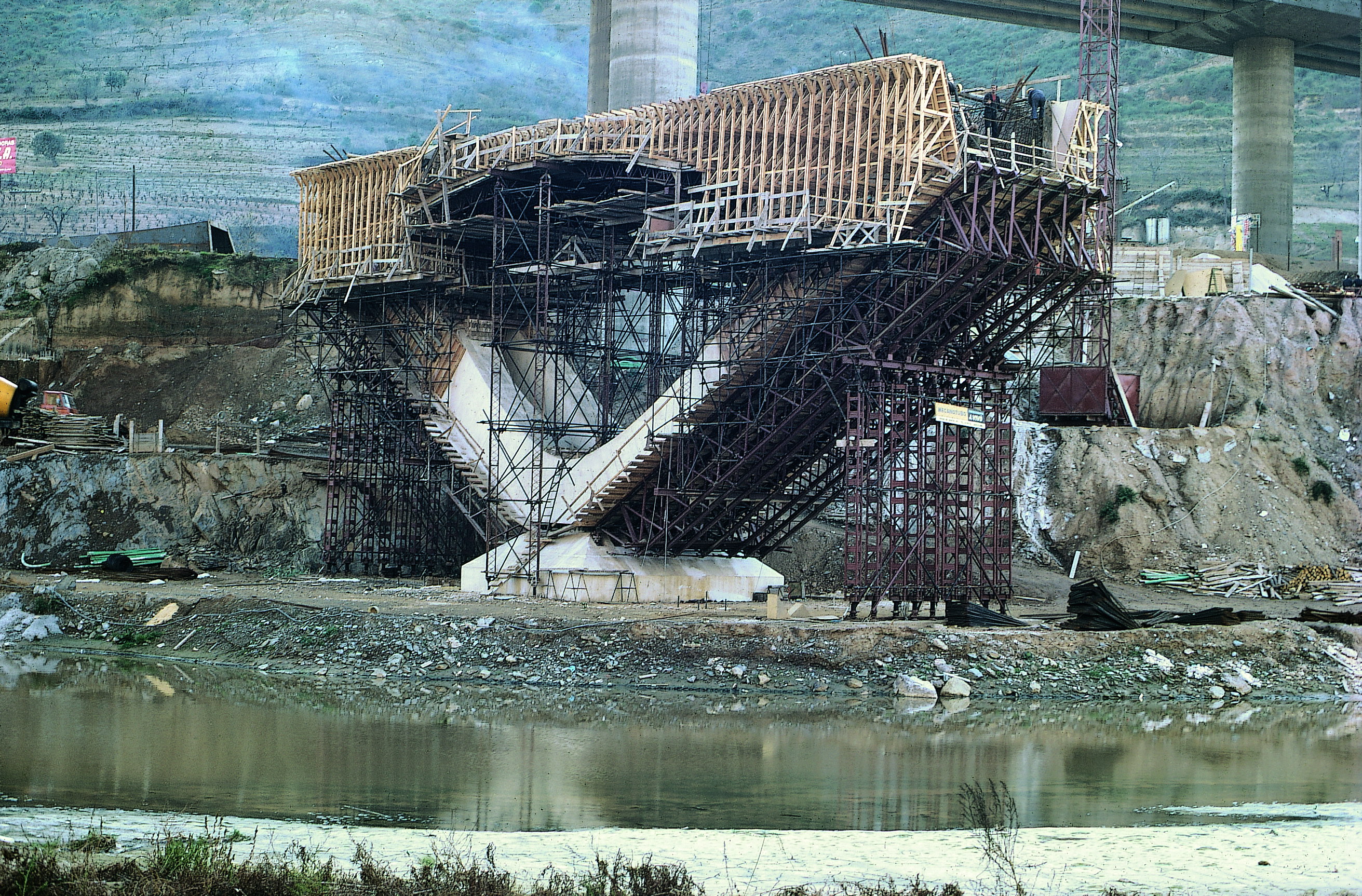

A traditional construction process has been carried out making use of wooden fromwork for the piers and successive cantilevering of girder segments which, once having closed the arch, form a large steel subset.
