BRIDGE ACROSS THE SANTA LUCIA ESTUARY IN MONTEVIDEO

Project details

  • LOCATION: Santa Lucía river, Montevideo (Uruguay)
  • CLIENT: --
  • DESIGNER: --
  • CO-DESIGNER: --
  • HELPERS: --
  • ARCHITECTURE: --
  • CONSTRUCTOR: --
  • PROPERTY: The Uruguayan Ministry of Transport and Public Works
  • TYPOLOGY: Composite bridge with multiple spans and abacus piers
  • PROJECT: --
  • CONSTRUCTION: 2005
  • SCOPE: Basic design, construction design and construction supervision
  • BUDGET: 11.200.000 €€
  • AWARDS: --

Technical Data

  • Total length: 776 m
  • Main span: 88 m
  • Typical span: 56 m
  • Width: 19.8 m

Description

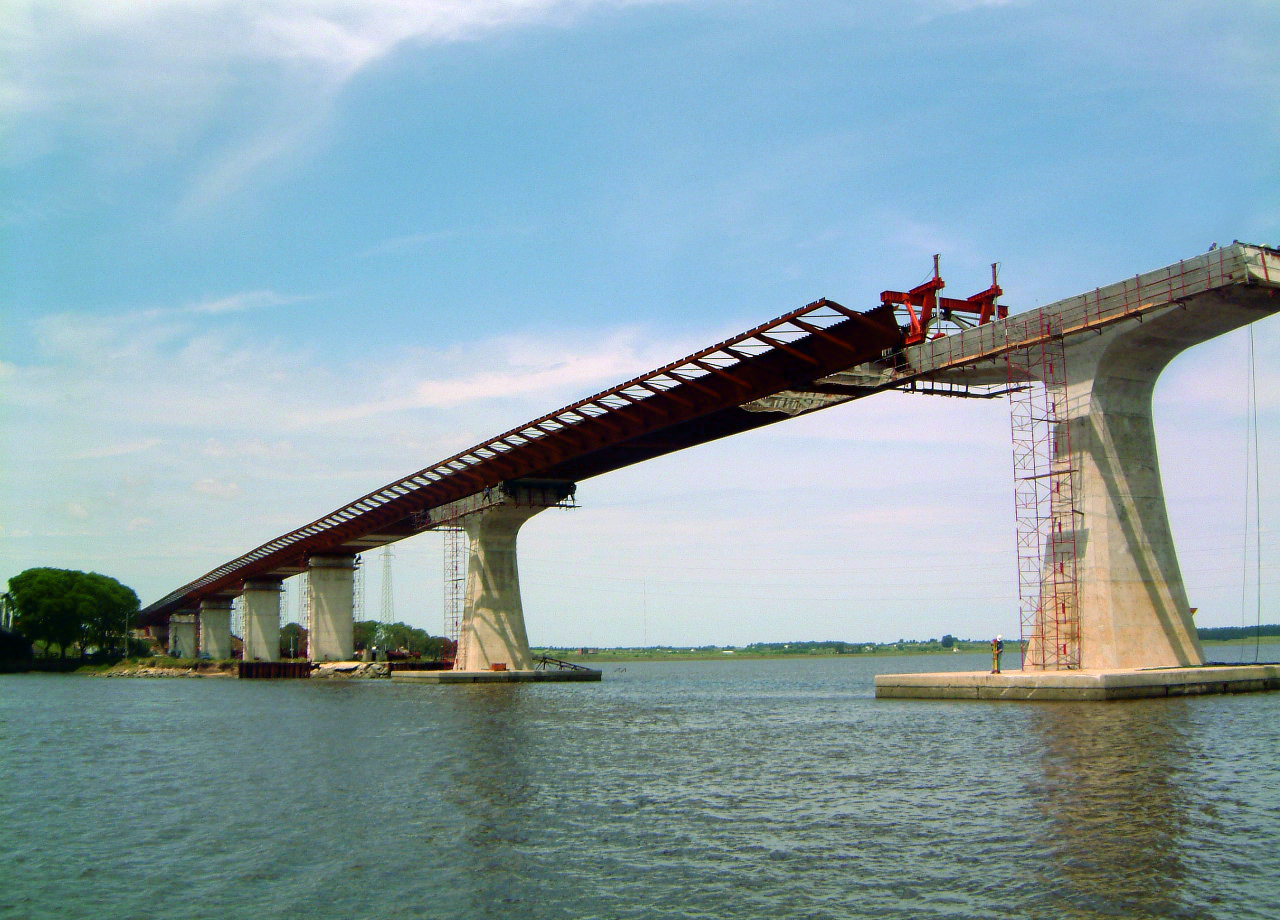

Structurally, the Santa Lucia Bridge belongs to the group of solutions with strict box-girder on abacus piers; a construction method that enables the launching of constant depth box-girders.

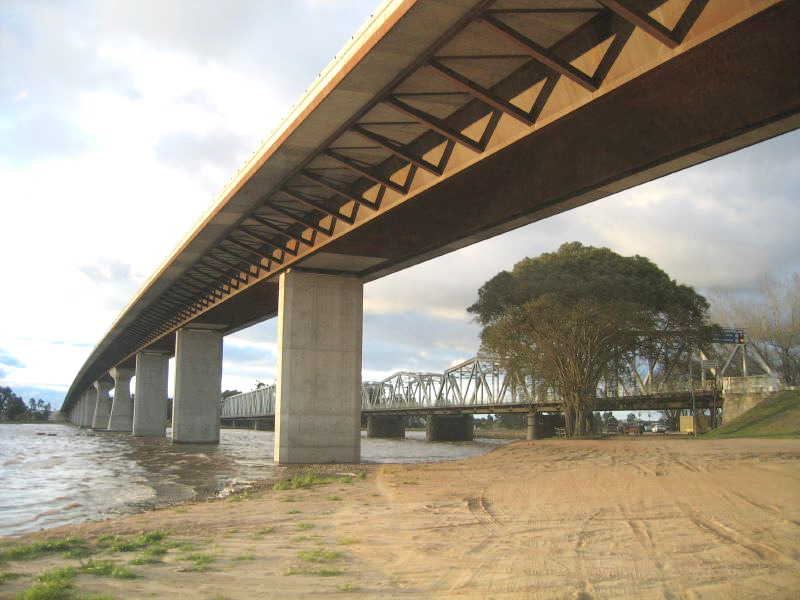

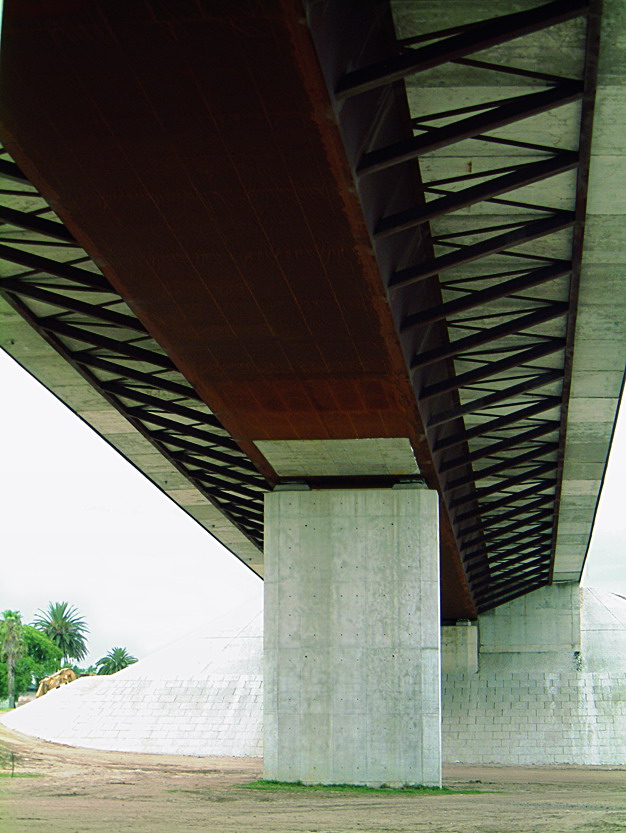

Its special features are all related to the single cell box-girder which is laterally extended with cantilevering strut and tie systems made out of steel and set every 4 m.

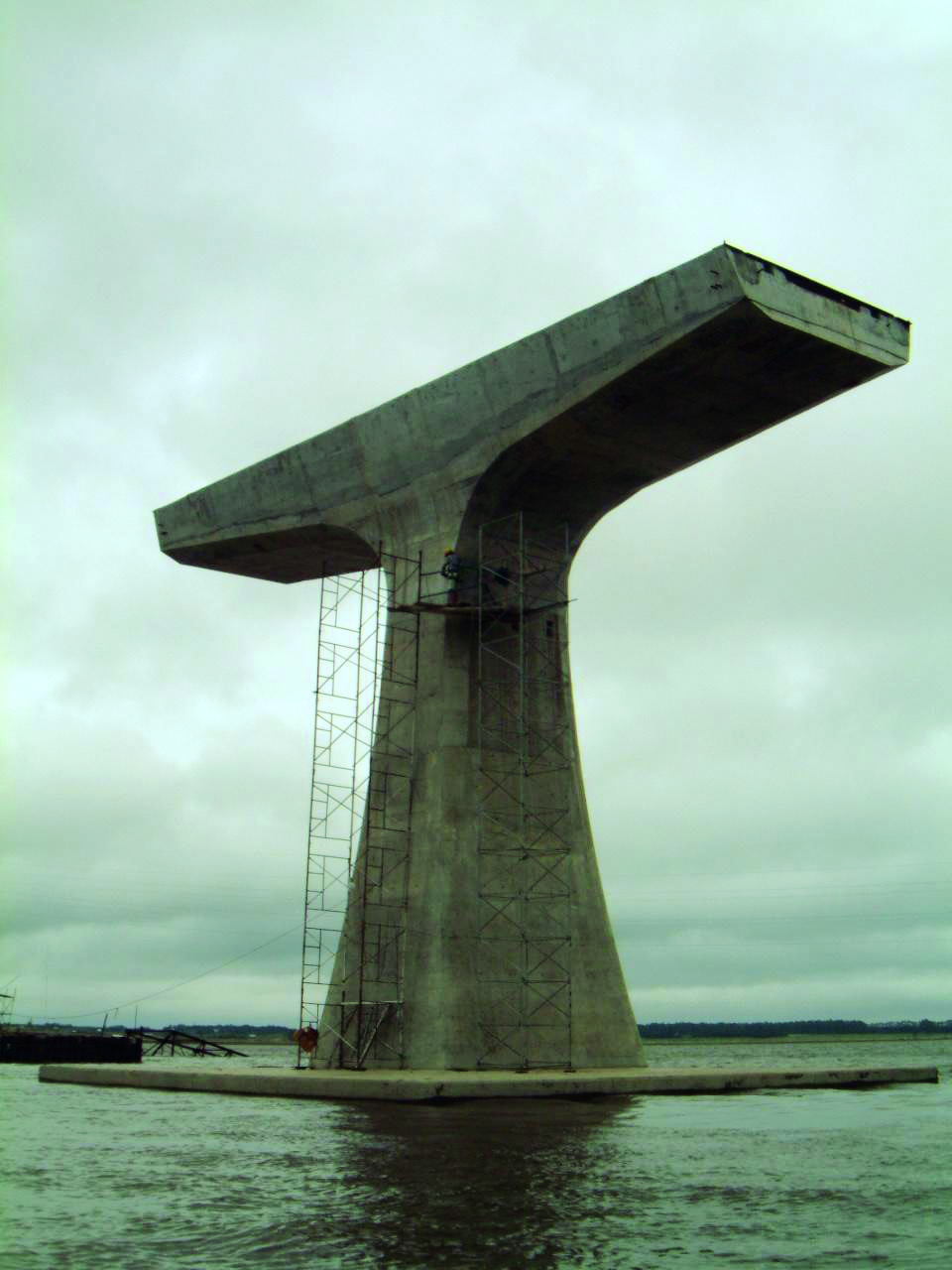

The abacuses, which allow spanning the distance of the larger central spans, are made out of concrete and monolithically connected to the shafts of the piers so to create aesthetic T-shaped elements, on top of which the steel box-girder is launched.
