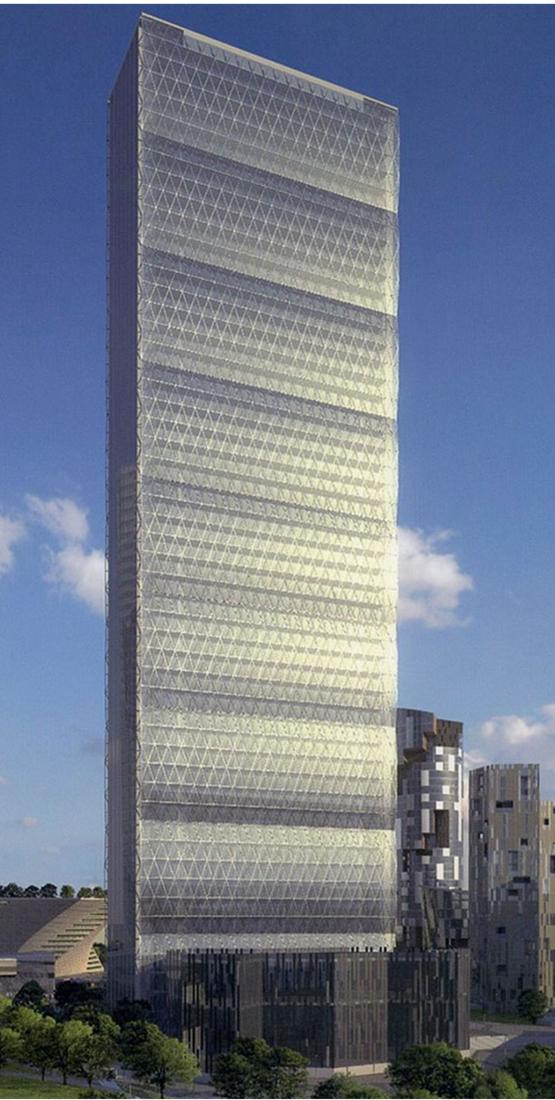

ALLIANZ TOWER - FIERA MILANO CITYLIFE

Project details

Technical Data

  • Height: 220 m (202 m above grade)
  • Number of storevs: 50
  • Gross floor area: 53,000 m2

Description

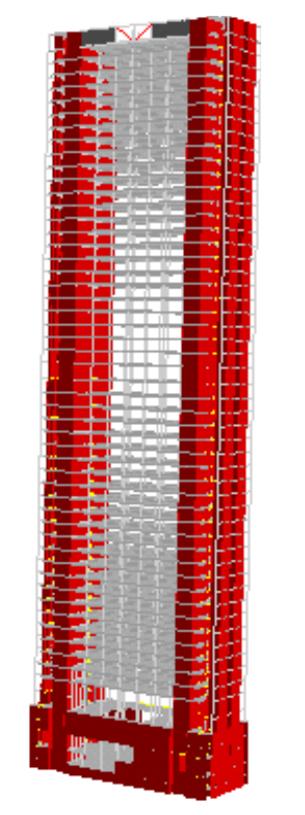

The main structural elements of thetoweragainst horizontal loads, are two main cores, collaborating with panoramic lifts cores by means of a short slab of 30 cm of thickness. At the top of the tower, in order to obtain more stiffness against wind and seismic forces, main cores are connected by means of two steel trusses.

The contribute of composite columns is significant against transversal wind, and negligible against the longitudinal one, since they are not connected to the top steel trusses.

The floors are solid slabs made out of reinforced concrete, with a thickness of 25cm and two downstand steel beams.
