NEW HEADQUARTERS OF GAS NATURAL

Project details

  • LOCATION: Barcelona (Spain)
  • CLIENT: --
  • DESIGNER: --
  • CO-DESIGNER: --
  • HELPERS: Nilo Lletjós Masó (IOC - Barcelona)
  • ARCHITECTURE: EMBT. Enric Miralles & Benedetta Tagliabue
  • CONSTRUCTOR: --
  • PROPERTY: Gas Natural S.D.G.
  • TYPOLOGY: Group of office blocks of different type with concrete and composite structures
  • PROJECT: --
  • CONSTRUCTION: 2006
  • SCOPE: Conceptual design, basic design, construction design, construction management
  • BUDGET: --
  • AWARDS: --

Technical Data

  • Height of tower: 86 m (21 storeys)
  • Cantilever: 42 m – 5 storeys
  • Slab area: 80,000 m2

Description

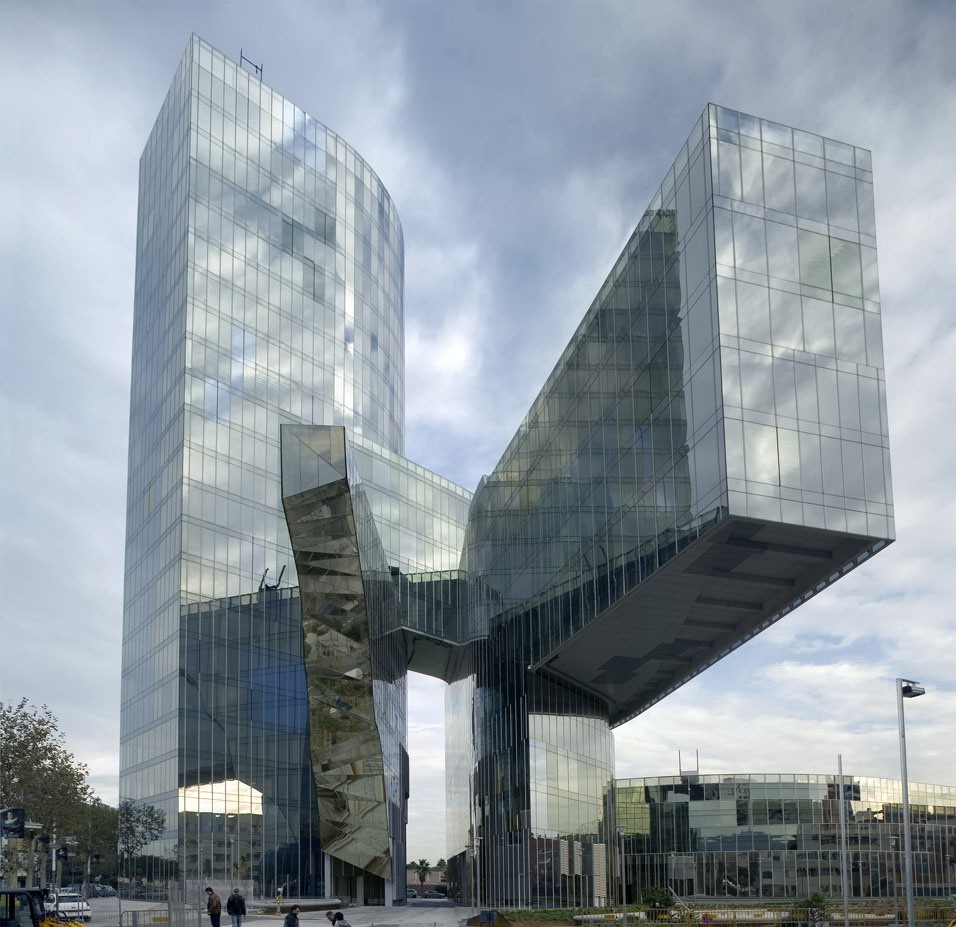

The new headquarters of Gas Natural is a group of buildings forming an integrated architectural complex; highlighted amongst them are:

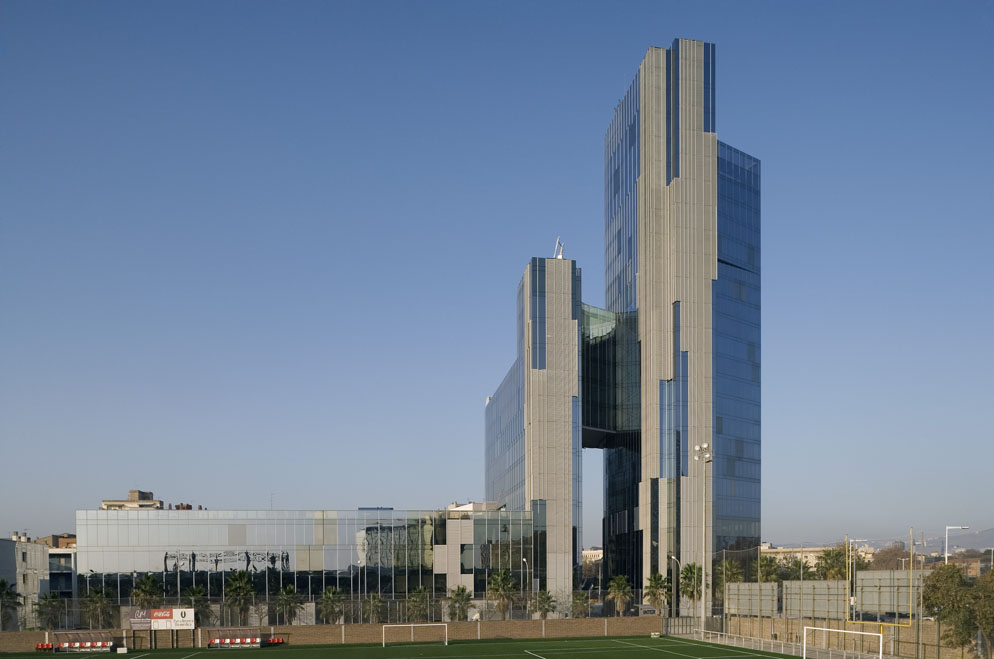

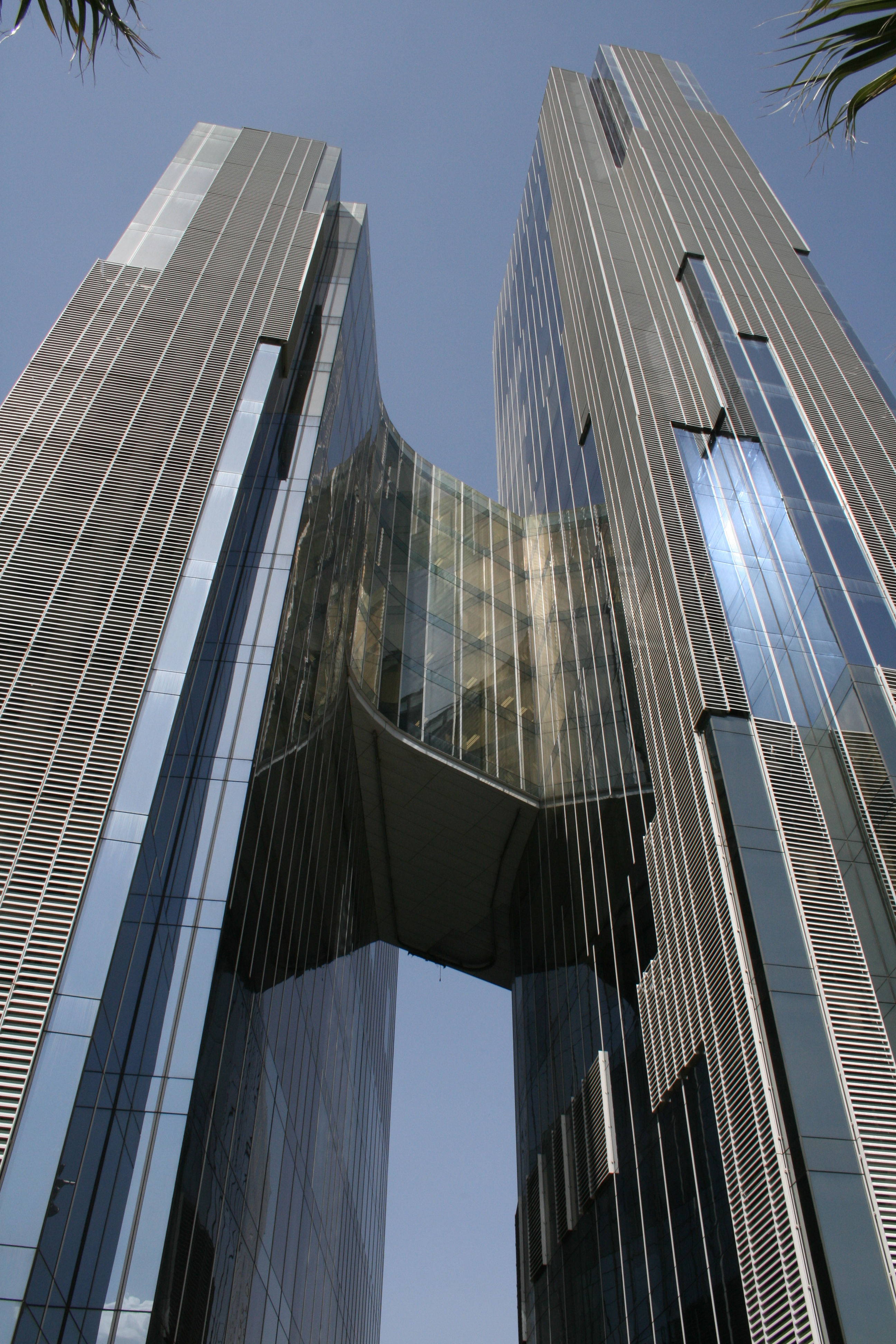

– The 86 m tall tower building counts 21 storeys and includes 3 reinforced concrete cores, steel columns and composite slabs with decking.

– The capitel building counts 8 storeys and has an external stepped cantilever.

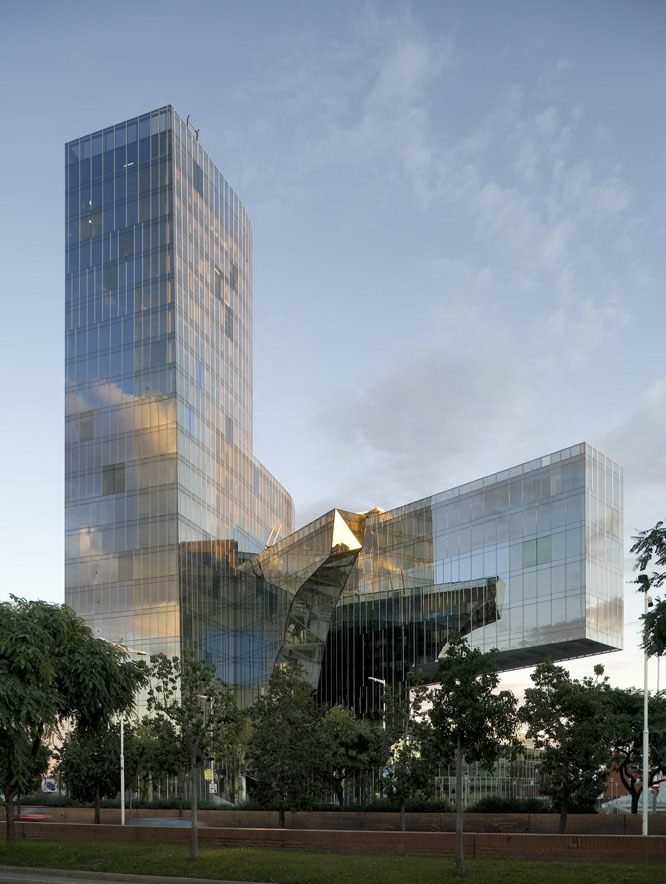

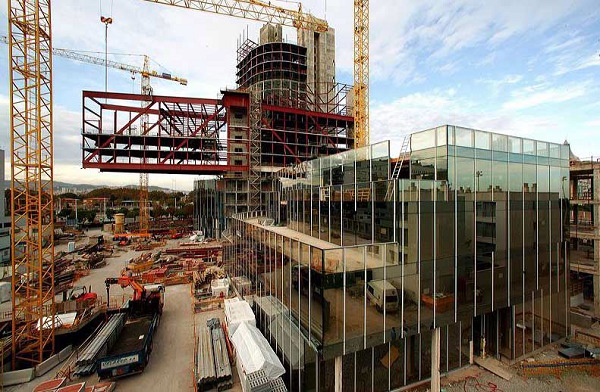

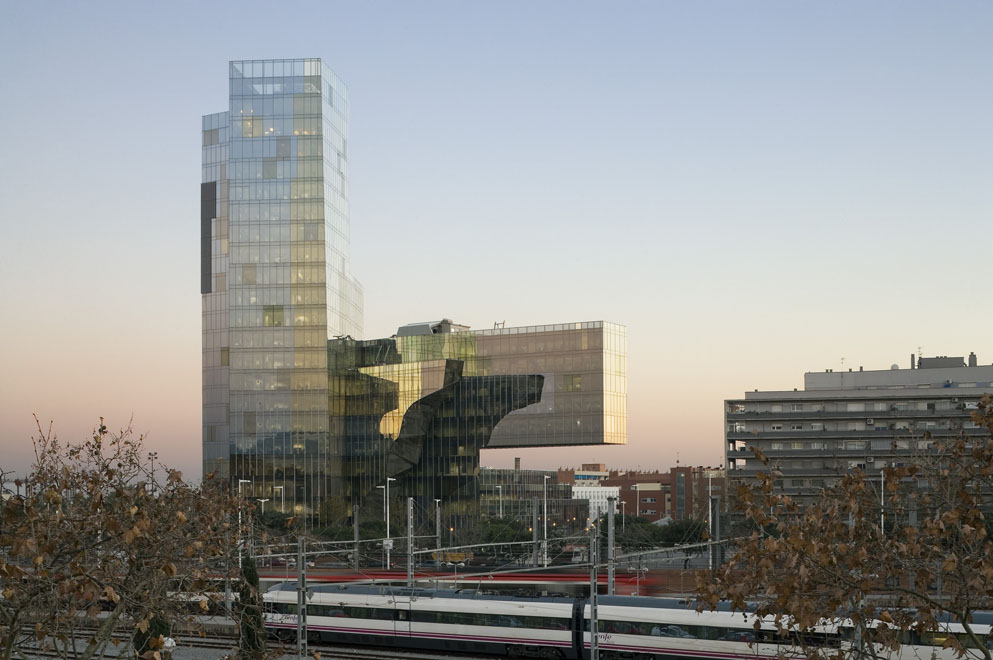

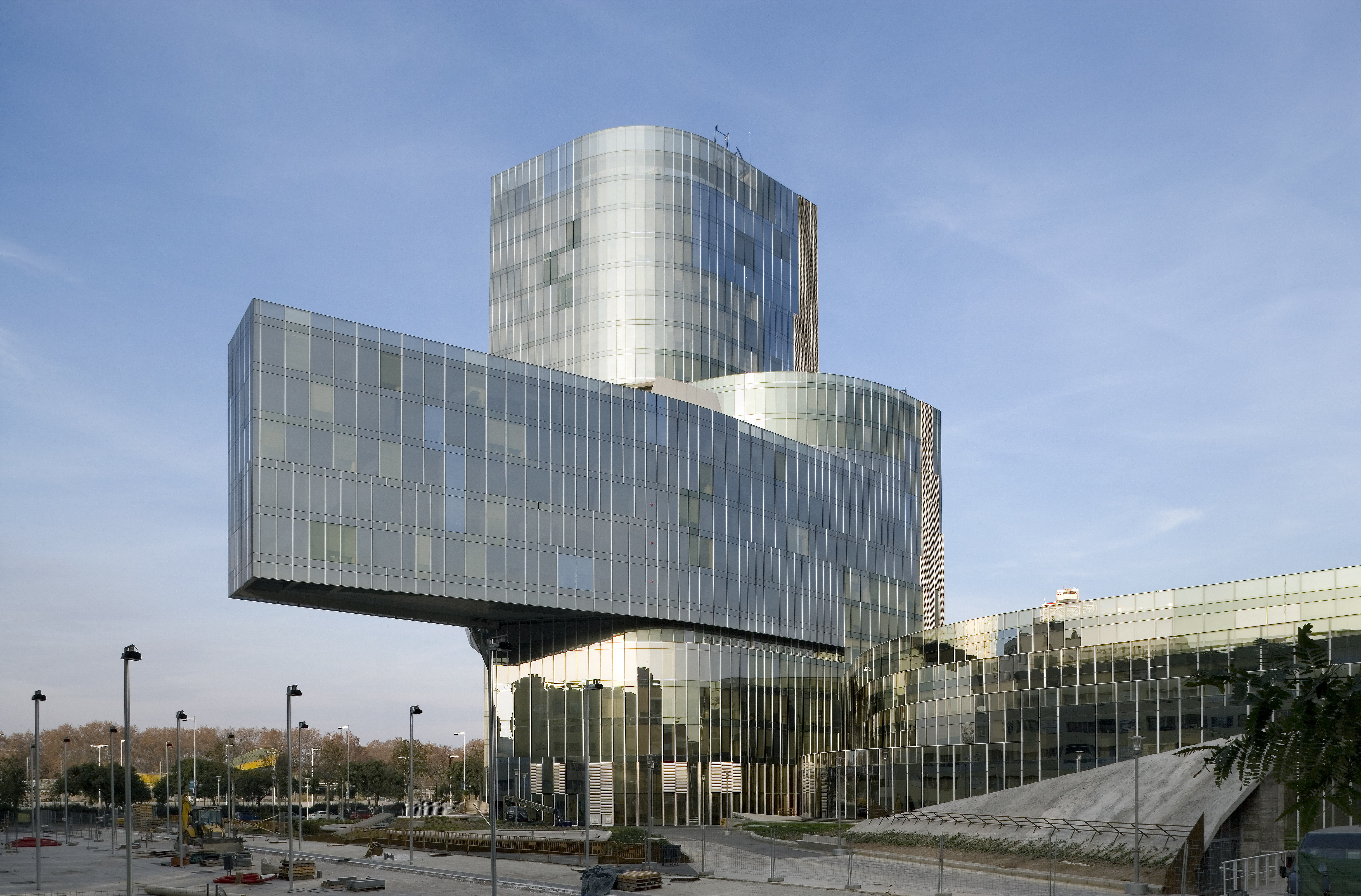

– The aircraft-carrier building counts 5 storeys and has a large 42 m overhang. It includes a vertical concrete core, a set of large steel trusses in the lateral facades and some suspensión elements which all together drive the acting loads towards the said central core.
