TORRE ESPACIO BUILDING

Project details

  • LOCATION: Madrid (Spain)
  • CLIENT: --
  • DESIGNER: --
  • CO-DESIGNER: --
  • HELPERS: --
  • ARCHITECTURE: Pei, Cobb, Freed & Partners
  • CONSTRUCTOR: --
  • PROPERTY: Inmobiliaria Espacio. Grupo Villar Mir
  • TYPOLOGY: Concrete high-rise building
  • PROJECT: --
  • CONSTRUCTION: 2007
  • SCOPE: Conceptual design, basic design, construction design, technical assistance to construction management
  • BUDGET: 30.900.000 €€
  • AWARDS: --

Technical Data

  • Total height: 237 m (219 above ground level)
  • Floors: 62 floors (56 above ground level)
  • Slab surface: 75,000 m2 (tower) + 36,000 m2 (car parks)

Description

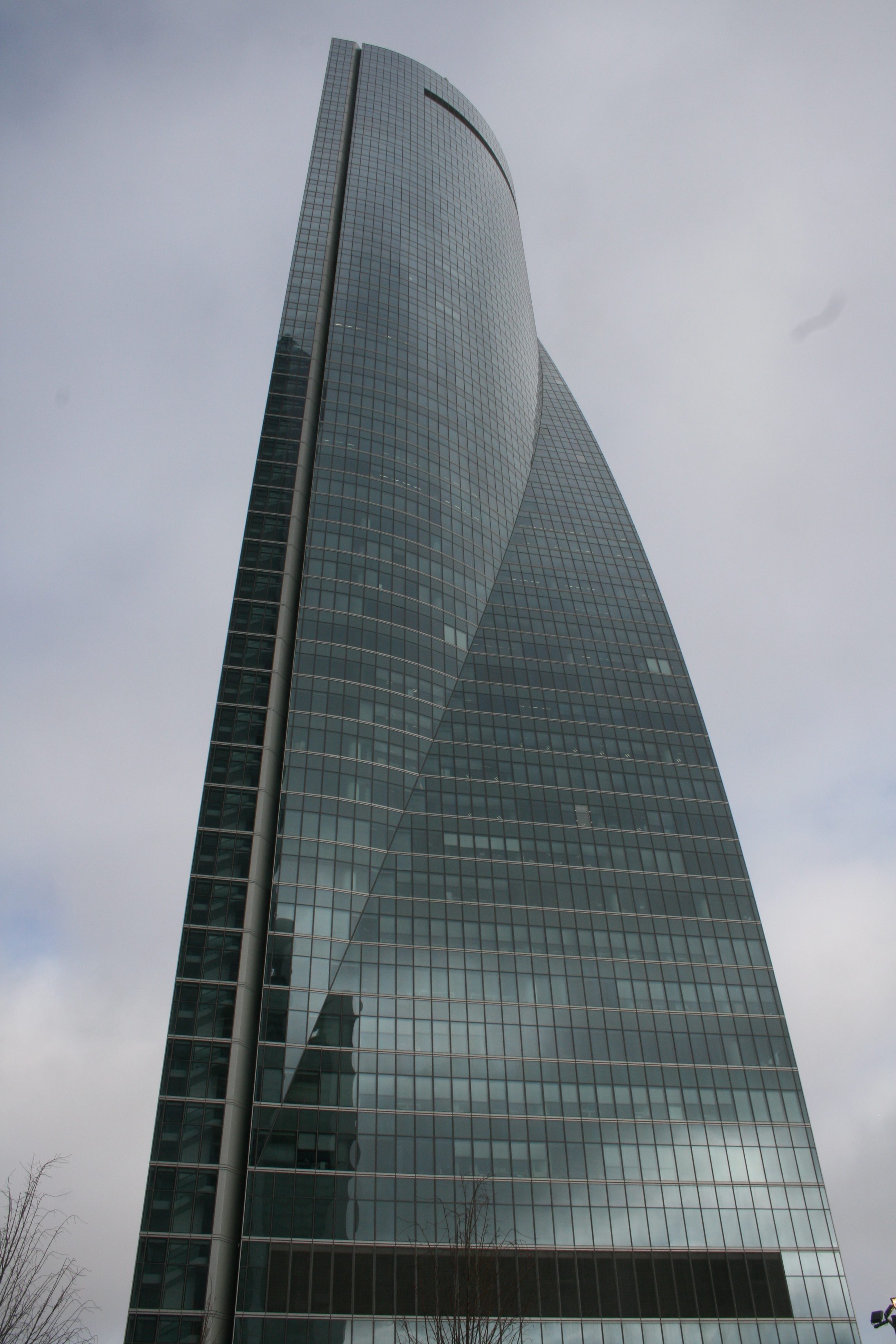

With its 237 m (219 above ground), the Torre Espacio Building,  became the tallest building in Spain when  it was completed in February 2007.

The structure is composed of reinforced concrete cores and solid floor slabs which are prestressed in some cases. The building has a ringed structure which connects the central core to the outer columns.

At the lower part of the building, two large transfer girders provide a great concourse at ground level.

A 4 m thick prestressed mat foundation transfers the loads to the soil.
