Project details

Technical Data

  • Height: 118 m ( 110 m above grade)
  • Number of storeys: 27 ( 25 above grade)
  • Gross floor area: 32,000 m2

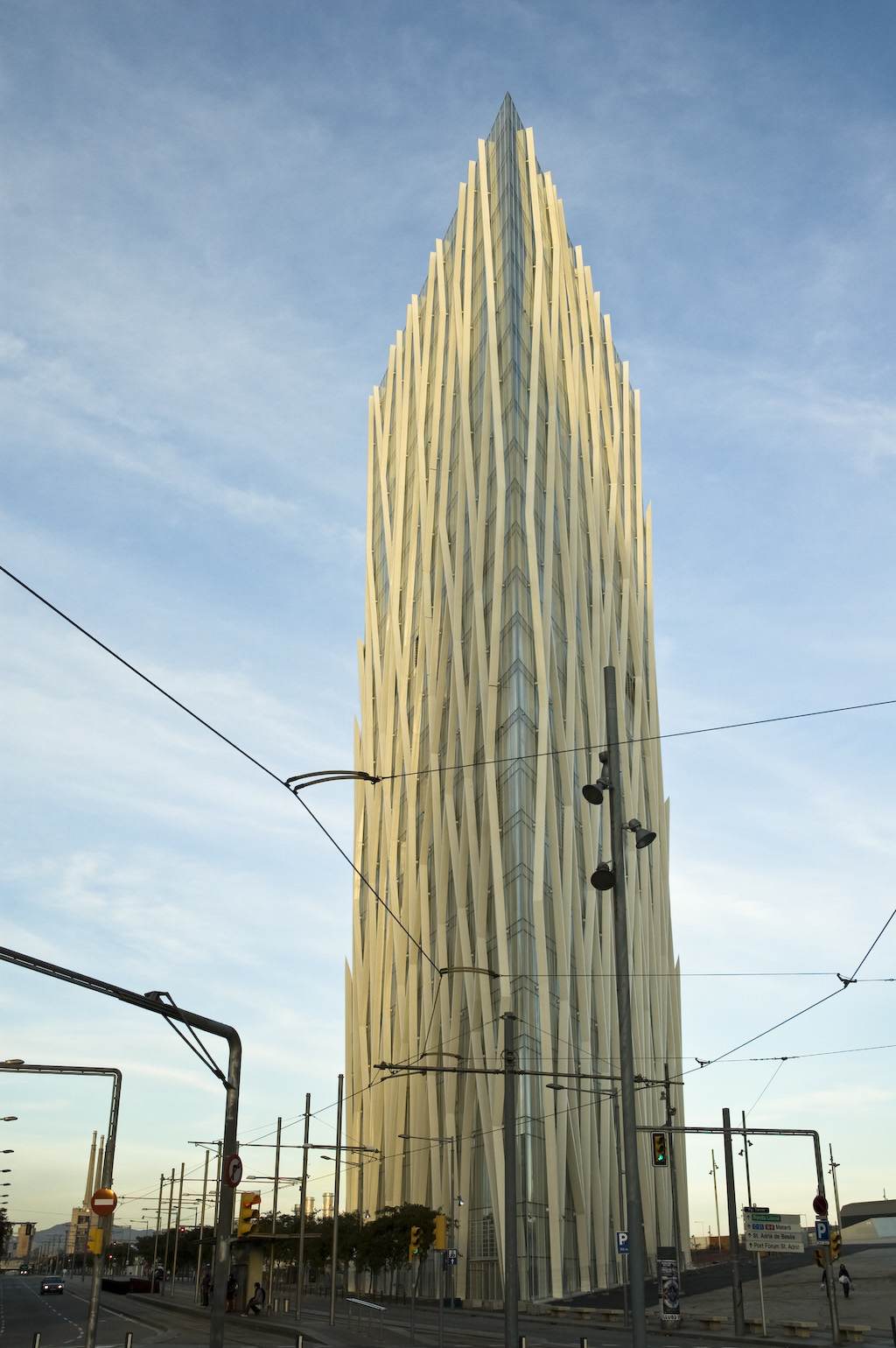

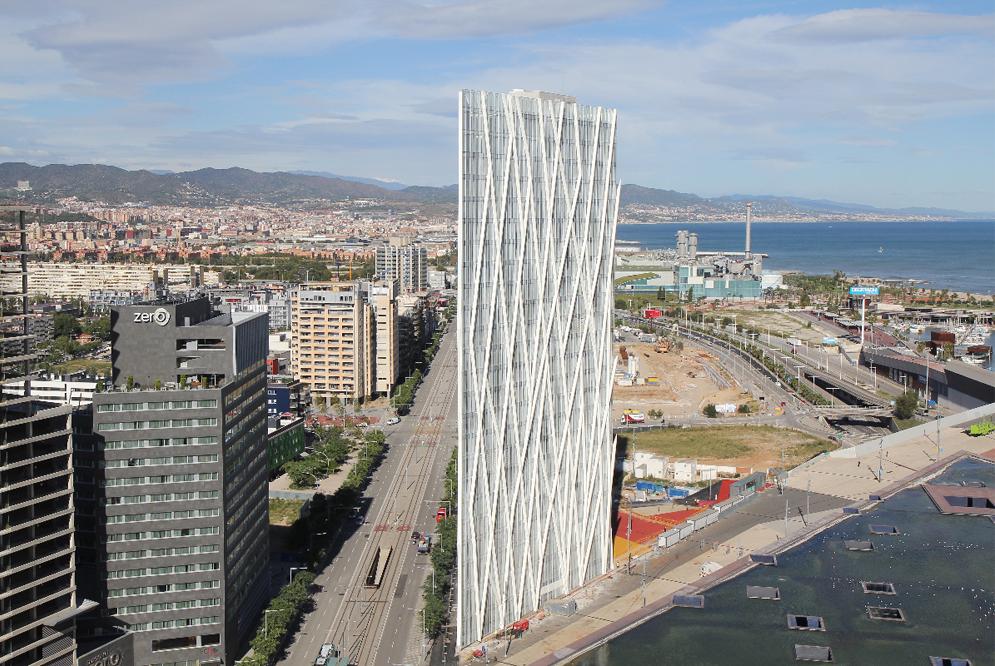

This tall building has a basic structural arrangement which corresponds to a “tube-in-tube” system consisting in the double vertical tube system where both tubes act jointly through the floor slabs between them.

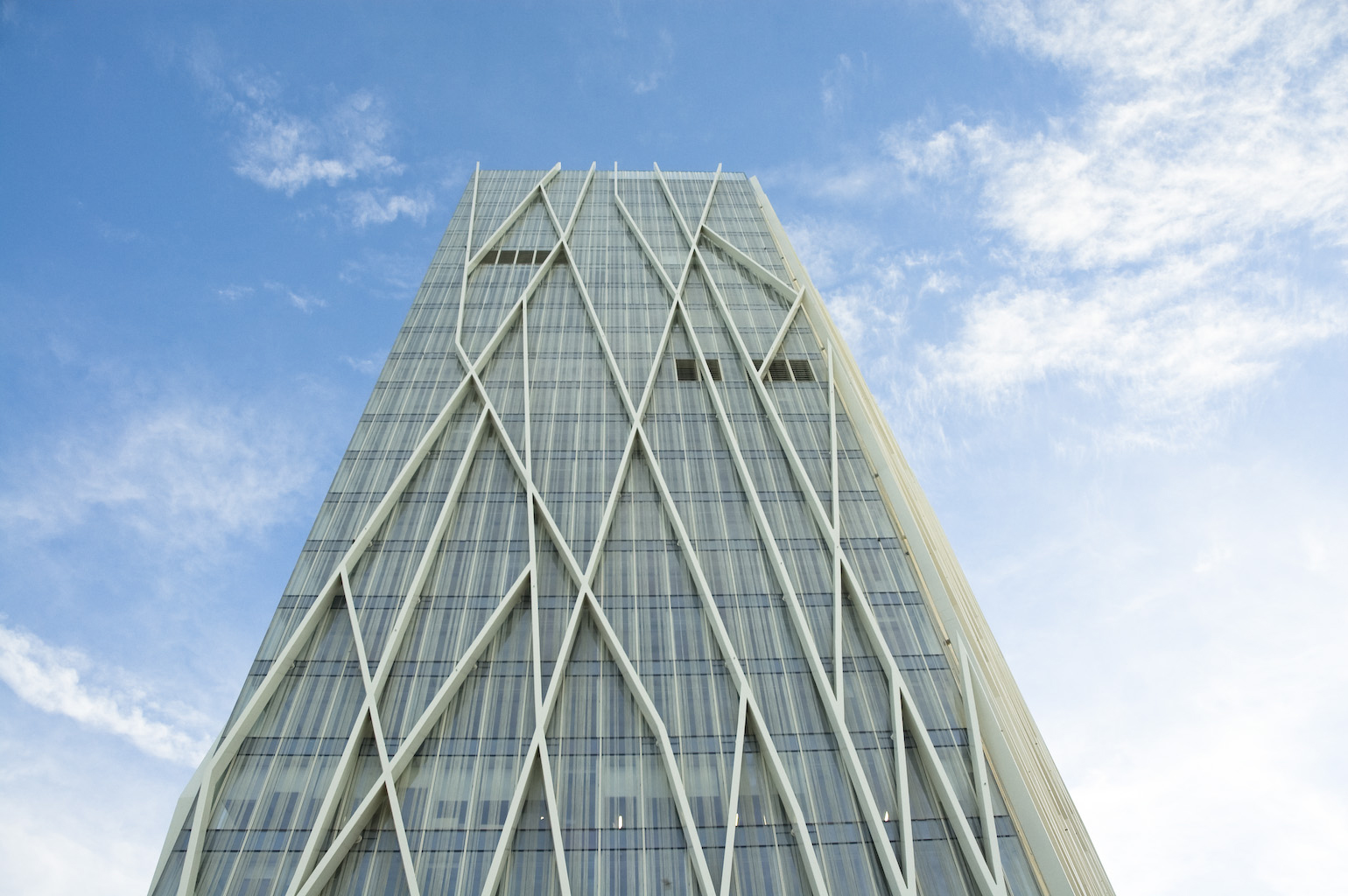

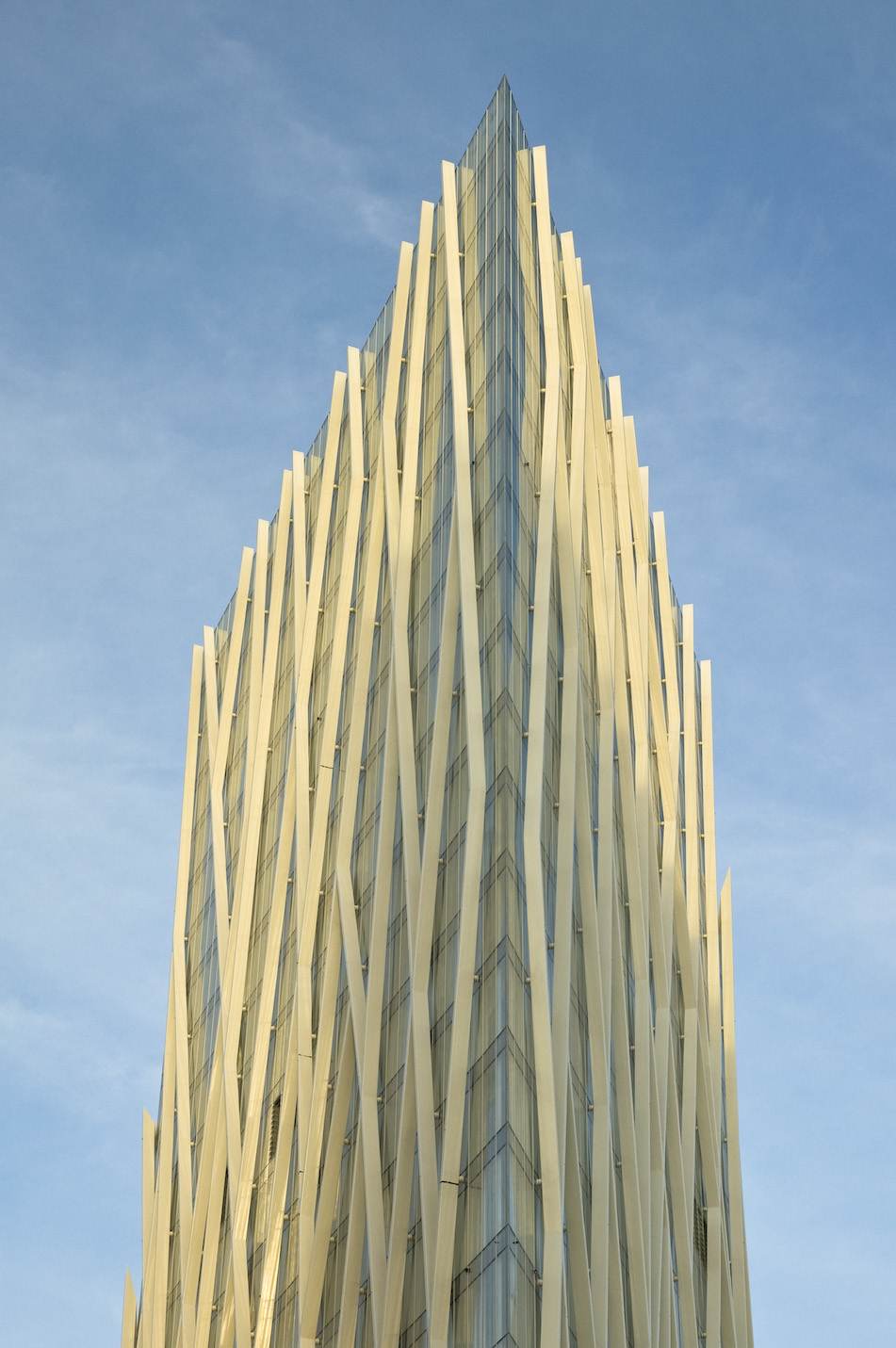

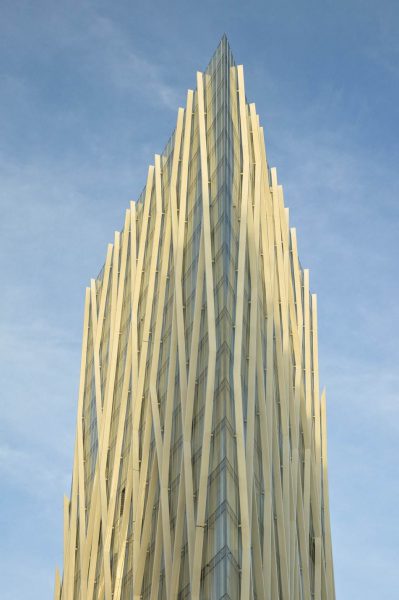

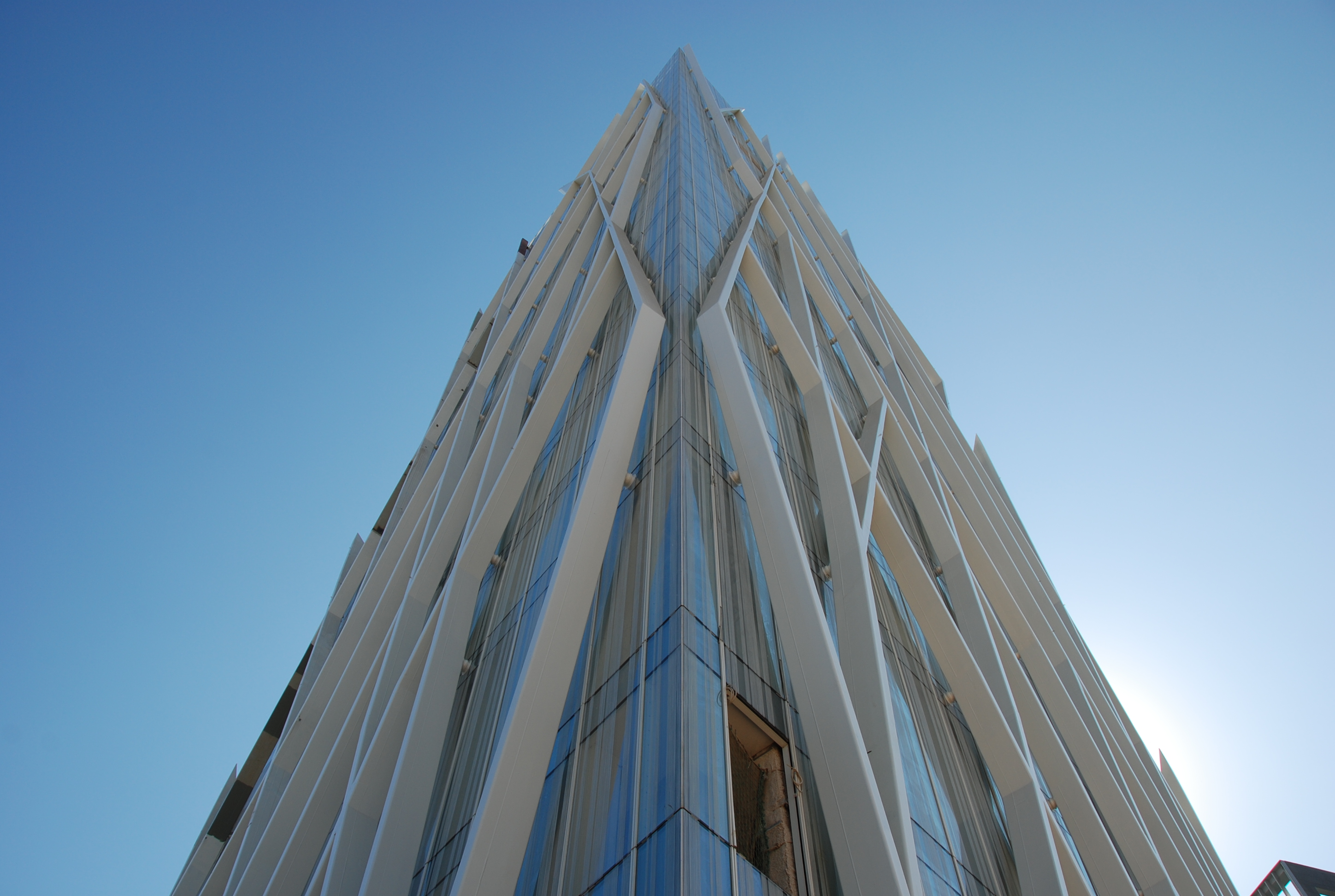

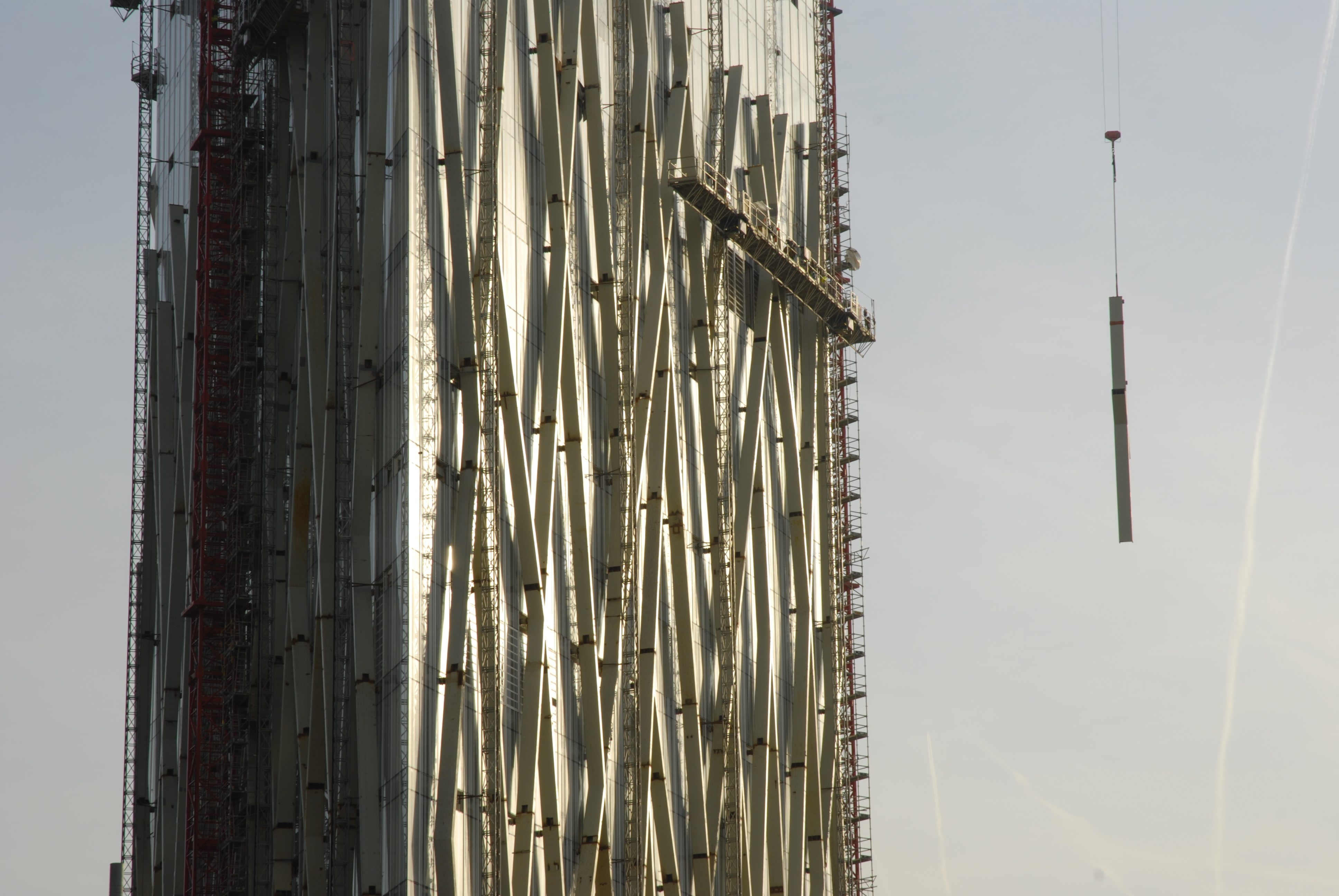

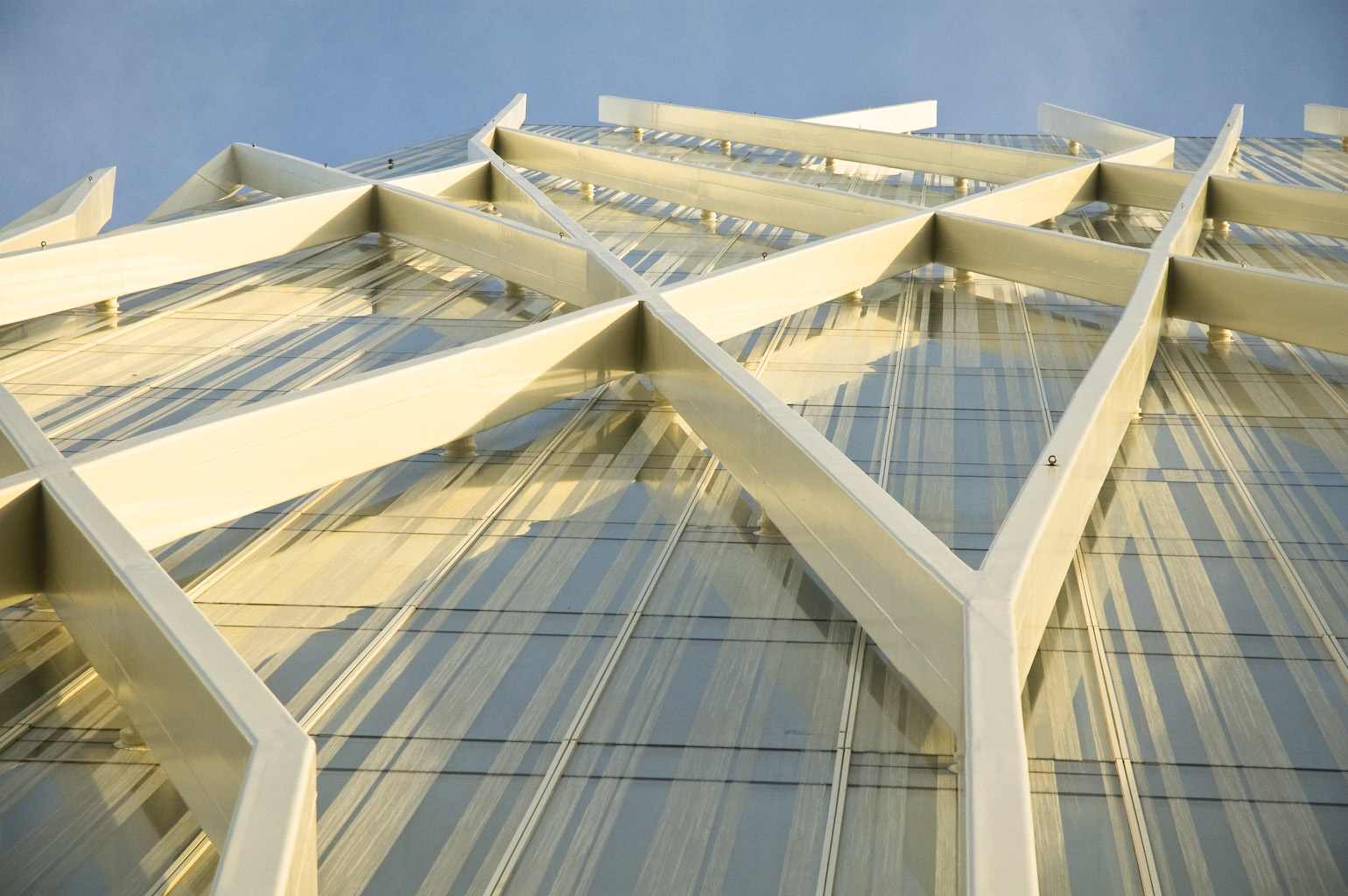

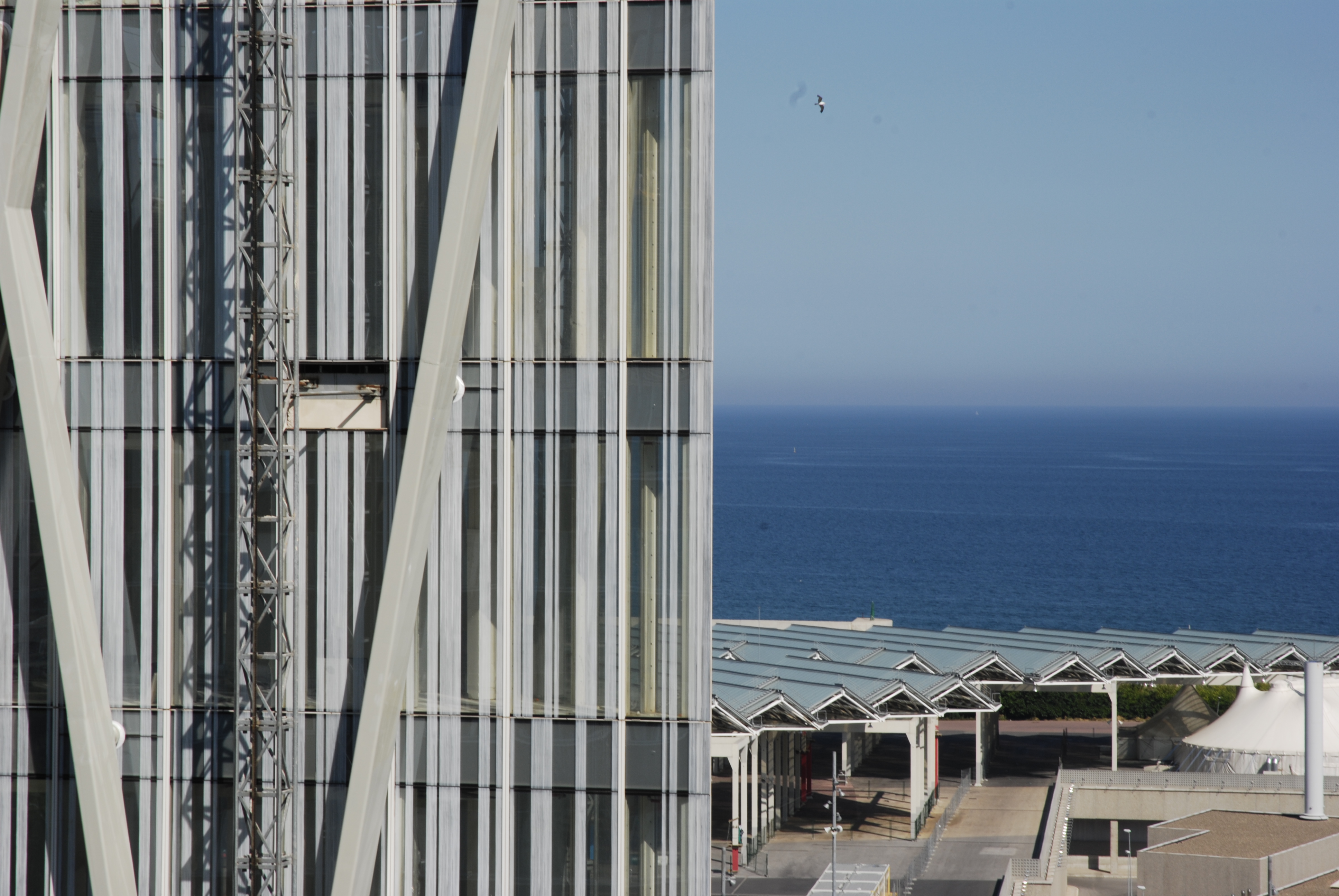

The basic load-bearing structure for horizontal actions is an inner elevator and service core made out of reinforced concrete. The facade structure is made up of a double assembly: the vertical columns of the inner facade and the sloping steel elements of the outer facade. They work together through connections set at floor level of each storey.
